Working with Projects

The project workspace is your primary development environment in AVstudio v3, where you create and manage exceptional user interfaces for Crestron systems.

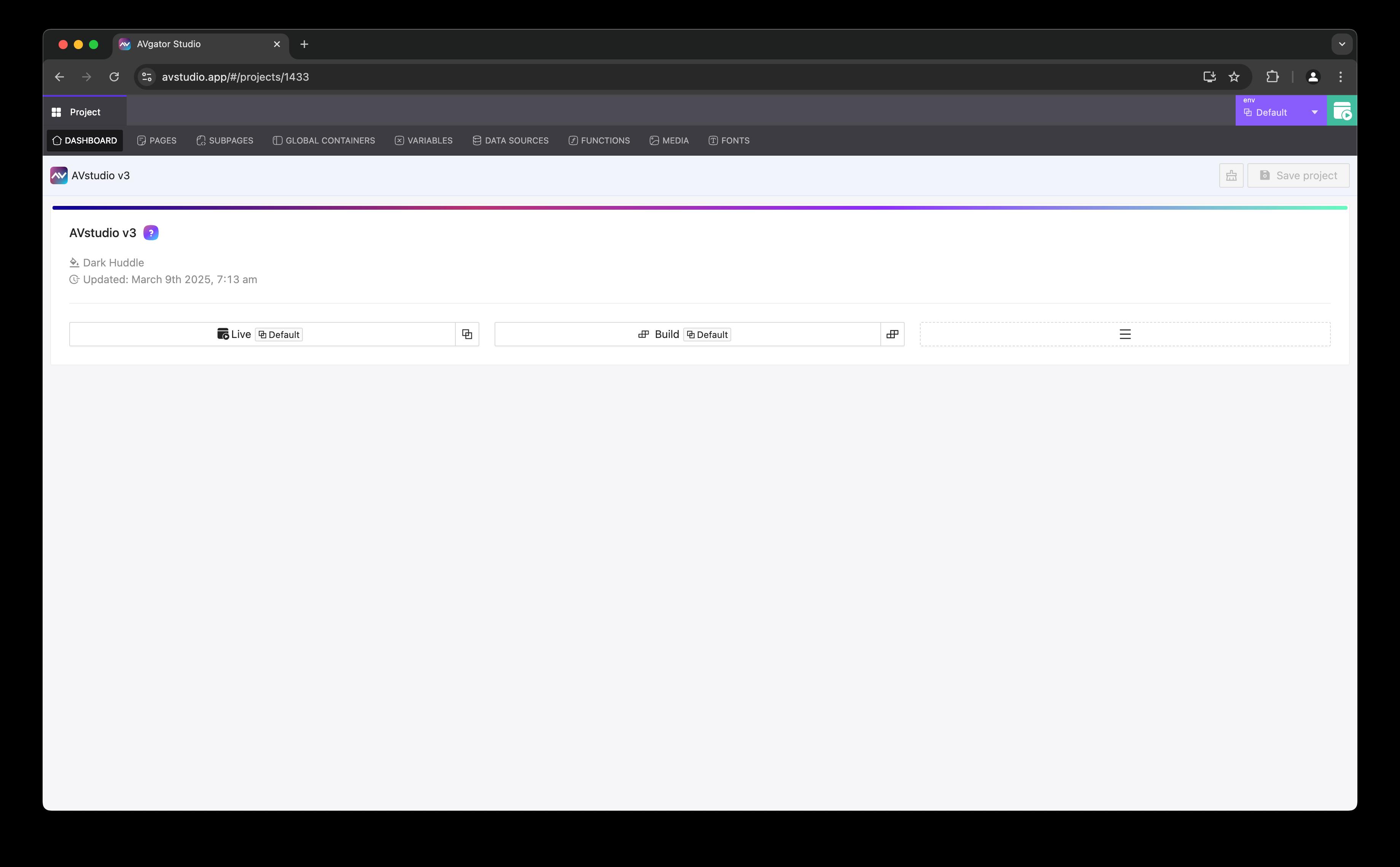

Project Dashboard Overview Caption: The AVstudio v3 project dashboard as of March 12, 2025.

Project Dashboard and Configuration​

Basic Controls and Settings​

  • Project Name and Theme: Displayed at the top (e.g., "Dark Huddle").
  • Timestamp: Shows the last update (e.g., March 9, 2025, 7:13 AM).
  • Save Project: Click the "Save project" button to manually save your work.

Live Preview​

The Live Preview feature enables real-time interaction with your project:

  1. Click the Live button.
  2. Select an environment (e.g., "Default") from the dropdown.
  3. Open a new window to view live updates connected to your control system or equipment.

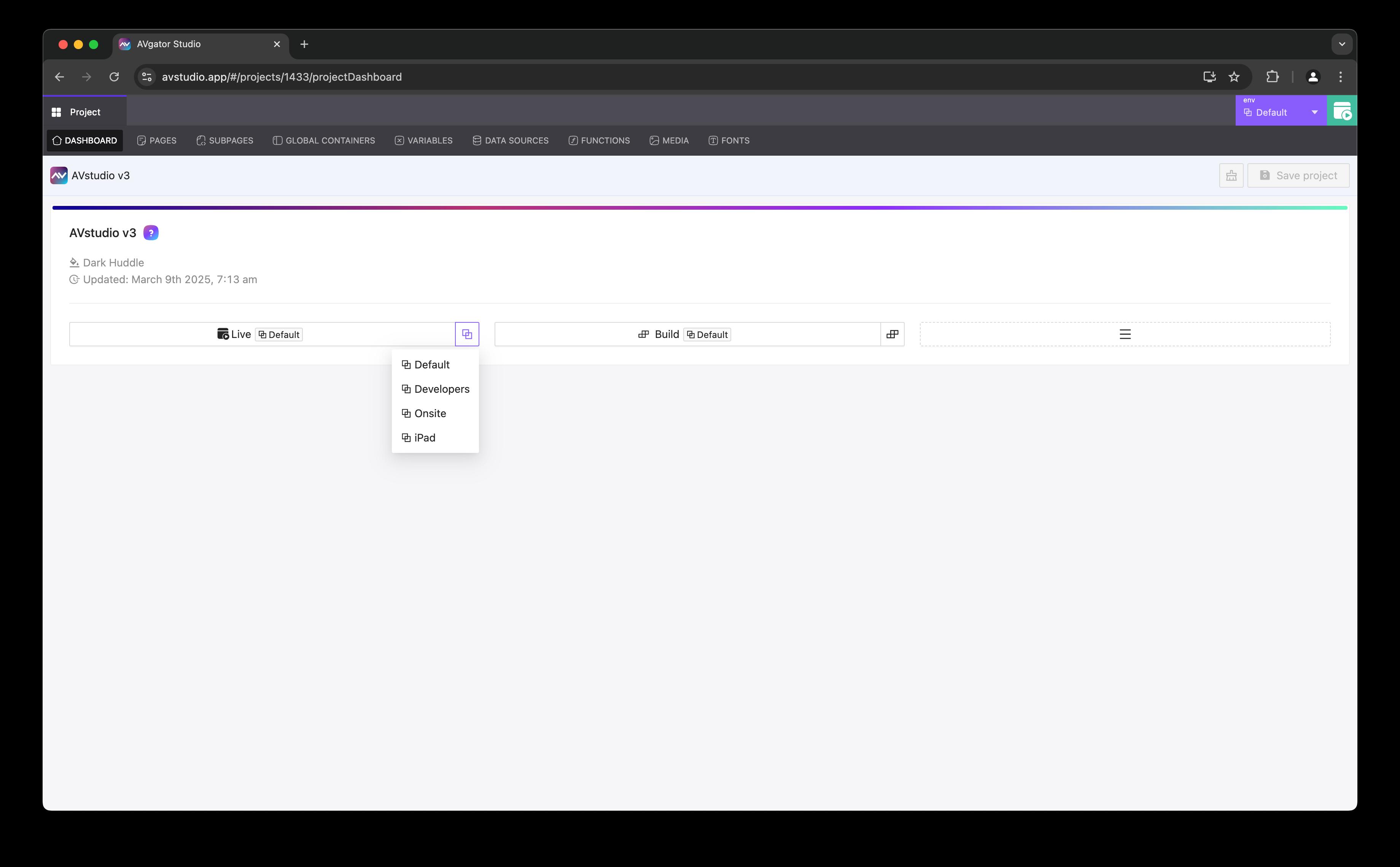

Live Preview in Action Caption: Live Preview with the Default environment selected.

tip

Use Live Preview to test modifications instantly while connected to your Crestron system.

Build​

Create a compiled file for deployment:

  1. Click the Build button.
  2. Select an environment (e.g., "Default") from the dropdown.
  3. Download the archive file (e.g., .ch5z for Crestron or .zip for other panels).

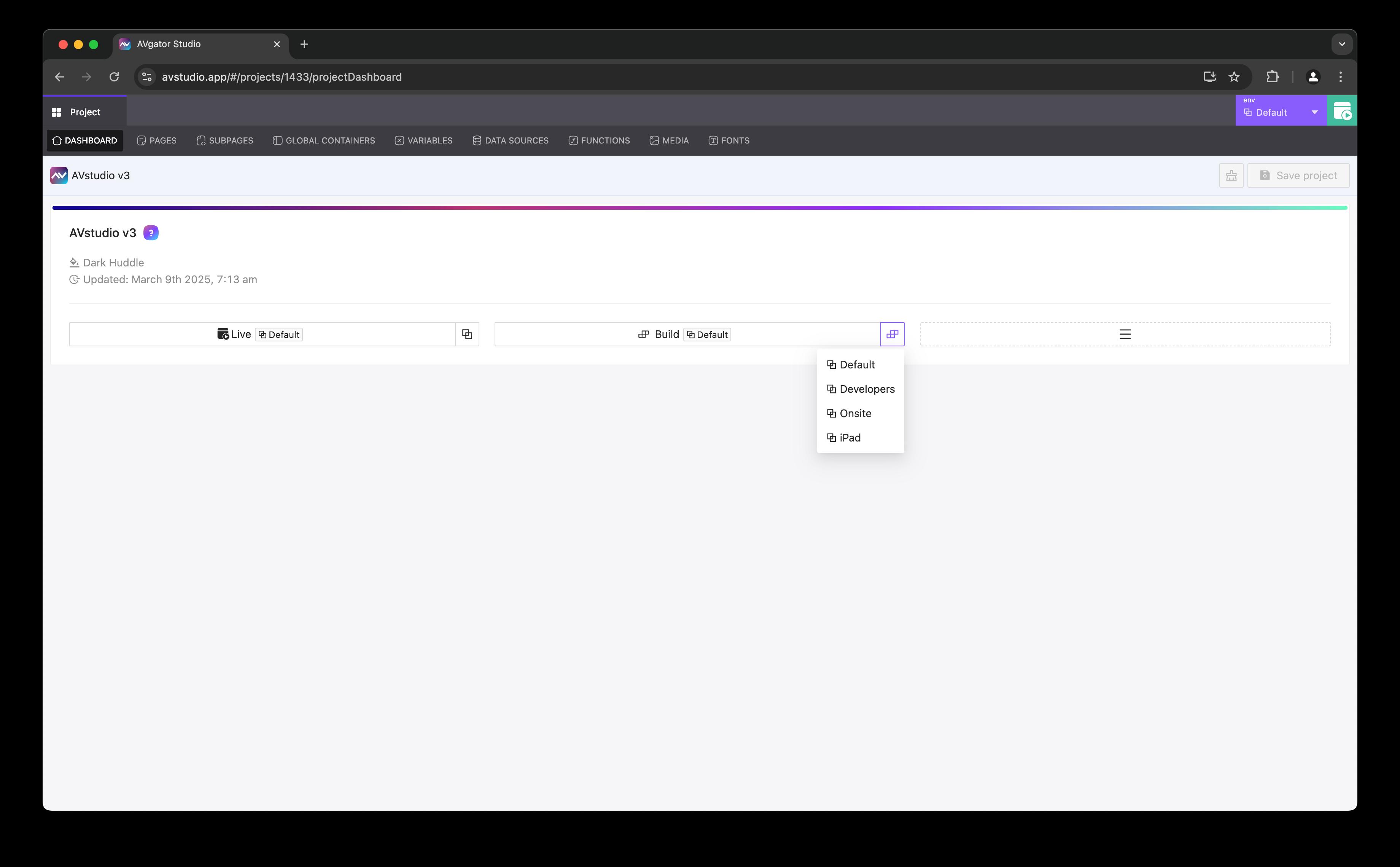

Build Selection Caption: Building a project with the Default environment.

Project Settings​

Access additional options via the hamburger menu. For more details, see Project Settings:

  • Project Settings: Configure project details.
  • Clone Project: Duplicate the current project.
  • Delete Project: Remove the project permanently.

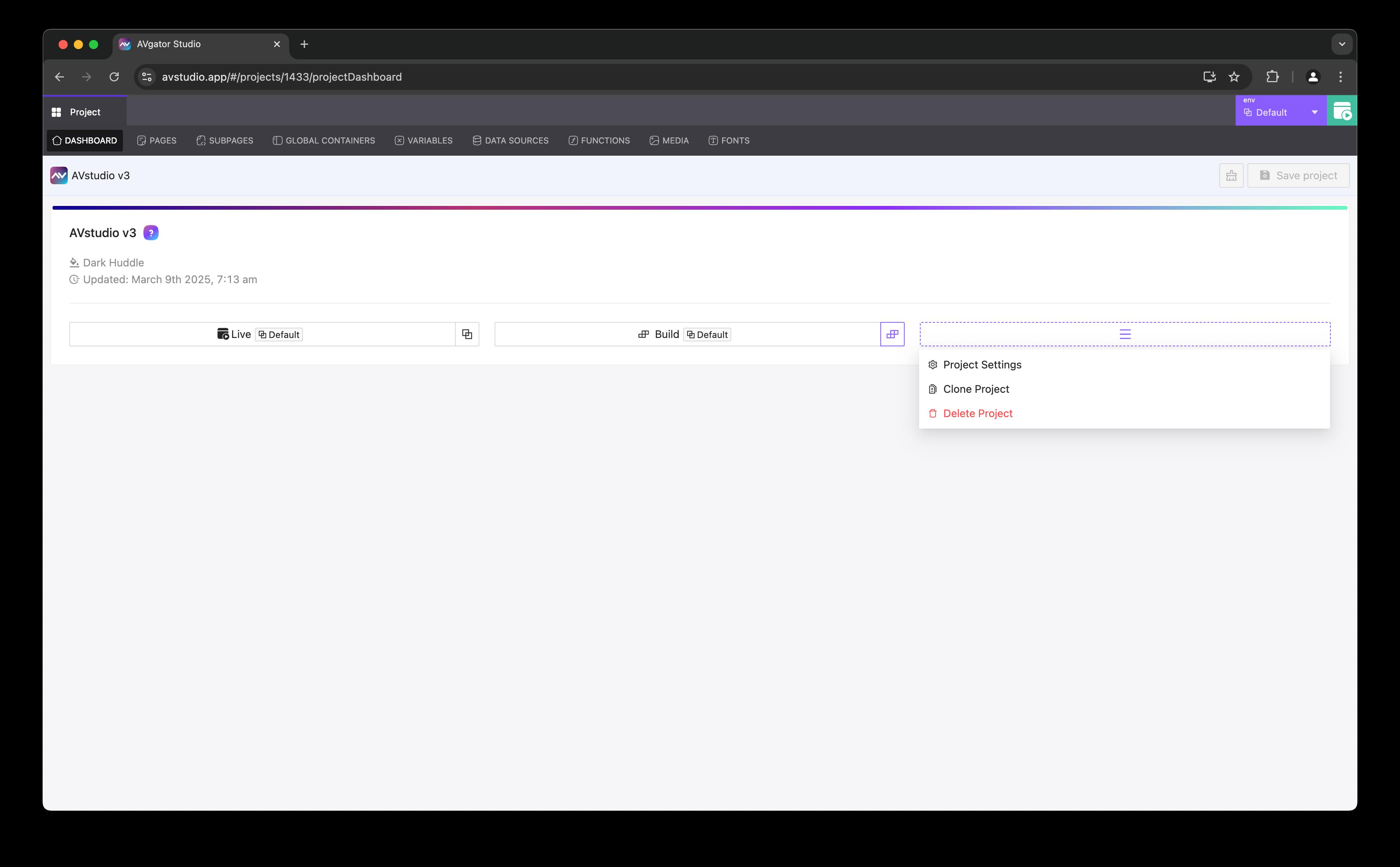

Project Settings Submenu Caption: The project settings submenu in AVstudio v3.

Content Management​

Pages and Structure​

  • Create and manage pages within your project. Learn more in Pages.
  • Implement Global Containers for reusable layouts. See Global Containers.
  • Configure the navigation system.

Asset Management​

  • Manage an Image and Icon Library.
  • Optimize video content for performance.
  • Organize files efficiently.
  • Use the Media Gallery for asset oversight.

Development Tools​

Visual Editor​

  • Intuitive drag-and-drop interface.
  • Extensive component library.
  • Precise layout grid system.
  • Adaptive and Responsive design tools.

Code Integration​

  • Apply Custom CSS Styling.
  • Add JavaScript Functionality.
  • Implement HTML Blocks.
  • Customize components as needed.
Keyboard Shortcuts

Boost productivity with:

  • Ctrl/Cmd + C: Copy
  • Ctrl/Cmd + P: Paste
  • Ctrl/Cmd + S: Save
  • Ctrl/Cmd + Z: Undo
  • Ctrl/Cmd + Y: Redo

Project Components​

Core Elements​

  • Pages.
  • Global Containers for shared layouts.
  • Variables management. See Variables.
  • Data Sources configuration. See Data Sources.
  • Custom Functions.
  • Media Gallery.
  • Font management.

Testing & Preview​

Preview Options​

  • Standard Page Preview: View a static render.
  • Live Preview: Test full functionality across:
    • Tablet responsive testing.
    • Mobile adaptation testing.
    • Custom resolution testing.

Development Tools​

  • Real-time Live Preview.
  • Multi-device simulation.
  • Performance monitoring.
  • Debug console access.
Automatic Saving

AVstudio auto-saves periodically, but manual saves after significant changes are recommended.

Collaboration Features (Upcoming)​

Team Collaboration​

  • Shared project access (coming soon).
  • Role-based permissions (in development).
  • Version control system (planned).
  • Change history tracking (upcoming).

Team Communication​

  • In-page annotations (future release).
  • Design review tools (in progress).
  • Task management (planned).
  • Change request system (upcoming).
caution

Collaboration features are not yet available in AVstudio v3 as of March 12, 2025. Stay tuned for updates!

Best Practices​

Project Organization​

  • Use consistent naming conventions.
  • Structure assets logically.
  • Maintain component documentation.
  • Create clear hierarchies.

Optimization​

  • Compress media assets.
  • Optimize custom code.
  • Utilize shared components.
  • Perform regular testing.

Development Flow​

  • Save work frequently.
  • Create version backups.
  • Reuse components.
  • Keep documentation current.
Testing

Thoroughly test across multiple devices and screen sizes before deployment.
